1:6 scale Model of up-armored HMMWV with SATCOM Antenna

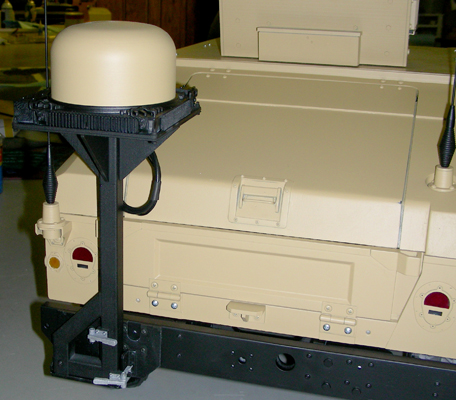

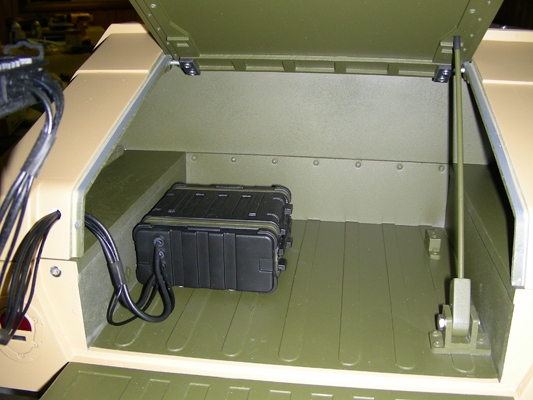

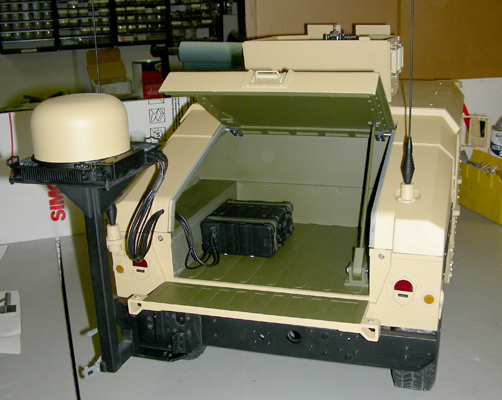

This giant 1:6 scale model of up-armored HMMWV was created in order to present a new compact and mobile SATCOM antenna mounted on the vehicle. The model features a highly detailed replica of SATCOM antenna on a swinging arm, opening trunk and a tailgate and a hardware inside the trunk with cables connected to the antenna.



The focus of the project was on presenting the antenna system and not a vehicle, therefore level of detailing of the HMMWV replica is not extremely high. However, general proportions and main features of the vehicle's replica are precise in order to represent accurately interaction between the vehicle and mounted on it antenna.



The model was accompanied by custom made transit case with custom foam lining.

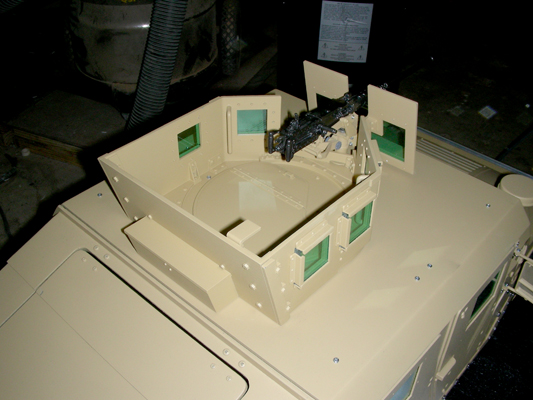

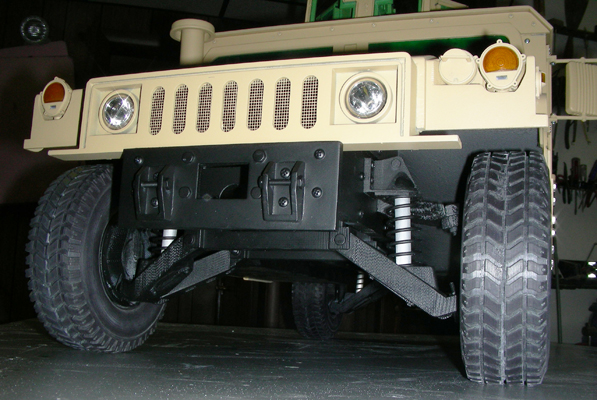

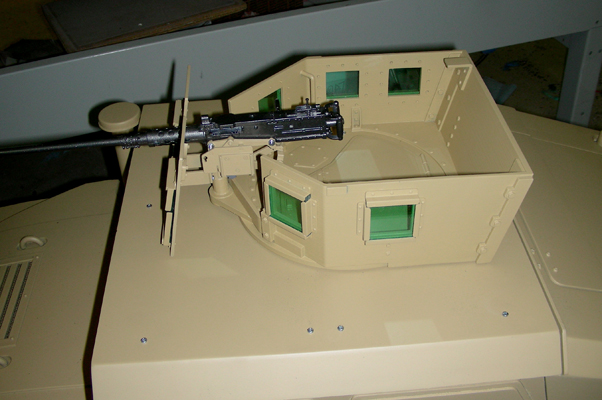

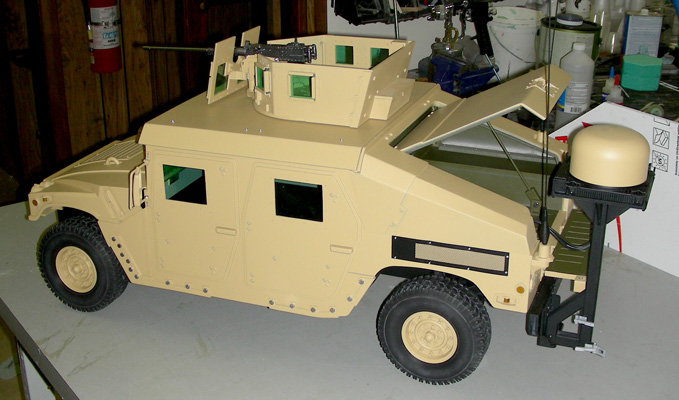

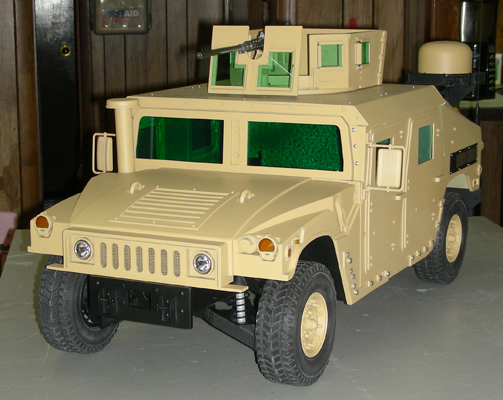

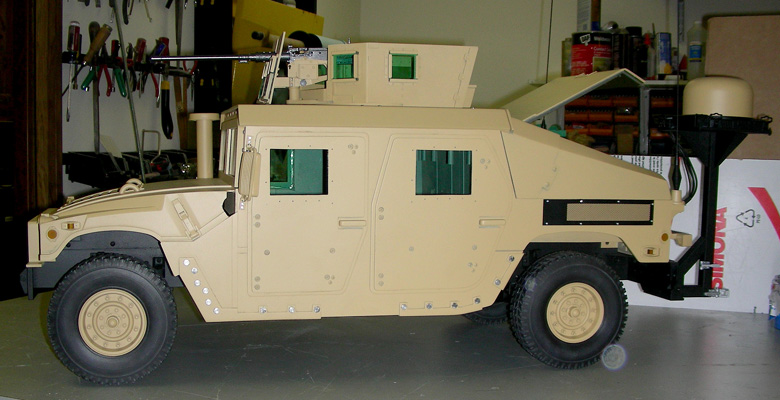

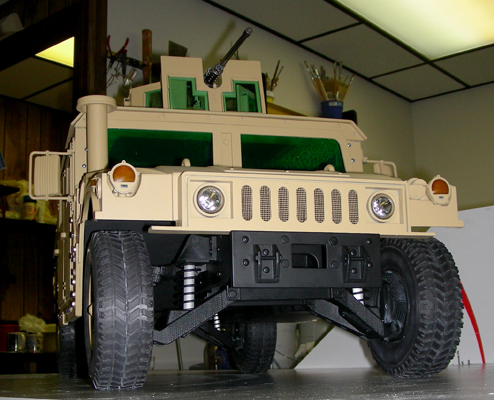

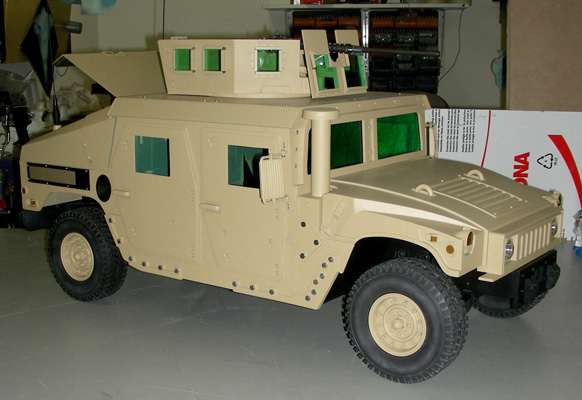

Completed Model

To enlarge - left click on the thumb. To close - left click again or Esc. Use ARROW buttons to navigate.

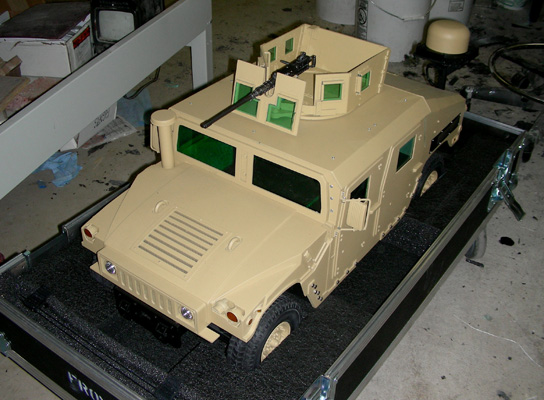

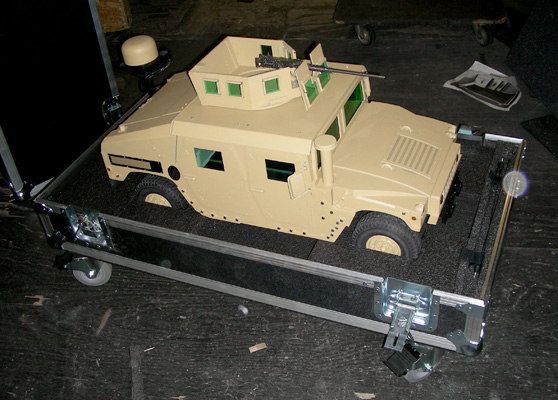

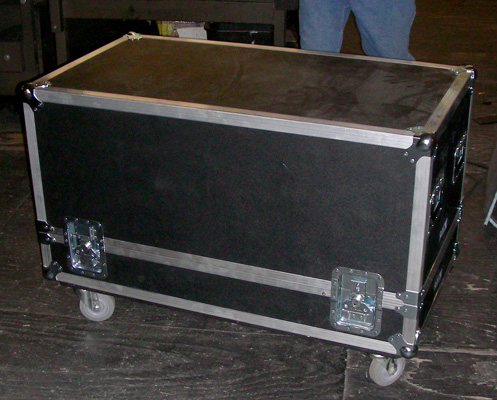

Transit Case

To enlarge - left click on the thumb. To close - left click again or Esc. Use ARROW buttons to navigate.
